Configuring synchronization

To enable automated provisioning or import users from another system, the Synchronization functionality in OpenIAM is essential. Synchronization serves two primary purposes:

  • Importing data from a source into OpenIAM.
  • Importing data from a source, bringing it into OpenIAM, and applying rules for downstream provisioning and deprovisioning.

At a high level, the synchronization engine is responsible for:

  • Retrieving data from a connector or CSV file and importing it into OpenIAM.
    • This can occur either on an ad-hoc basis or as a scheduled task.
  • Mapping incoming data from the source to OpenIAM objects.
  • Passing the data to the provisioning service to update downstream systems.

Configuring synchronization

To configure synchronization, follow these steps:

  1. Go to webconsole > Provisioning > *Synchronization.
  2. Several examples are provided to help you get started. If you are new to OpenIAM, we recommend leveraging these examples rather than creating a configuration from scratch. The following steps describe how to create a new configuration.
  3. Click Create Synchronization. You will see the screen below. Complete the form as described in the table.

Synchronization configuration

Field NameDescription
NameA descriptive name to identify this configuration.
Records count in one batchDefault is 1000. This determines how many users/records are processed per batch. Adjust this for performance: a higher number increases throughput, but excessive threads may reduce performance. If your transformation scripts are resource-intensive (e.g., >10 seconds per user), consider reducing this number to avoid exceeding the 30-minute RabbitMQ queue limit.
Is Active?Determines whether this synchronization configuration can be executed. If inactive, the sync will not run.
Detect orphanThis should not be enabled for data from a source system. Orphan detection is used for target systems and is covered in the Orphan Management section.
Provision to target systems?Enables downstream provisioning. After configuring synchronization and managed systems, this checkbox must be enabled for downstream provisioning to occur.
Synchronization SourceSpecifies whether data will be imported via a connector or CSV file. Choose accordingly.
Managed SystemDefines which managed system the user should be added to. For automated provisioning, use OpenIAM; provisioning targets are then defined in the transformation script.
Synchronization ObjectSelect the type of object being imported. Typically, choose User.
Synch TypeChoose between Complete or Incremental. Use Complete during development. For production, use Incremental if the source supports change detection (e.g., using whenChanged in LDAP).
Synch FrequencyDefines how often synchronization runs. If a value is entered, a scheduled task will be created. Ensure the CRON expression is valid.
Example: To run every 24 hours, use 0 */24 * * * ?
Pre-Processor ScriptGroovy script that runs before synchronization starts.
Post-Processor ScriptGroovy script that runs after synchronization completes.
Validation RuleGroovy script used to validate incoming data.
Transformation ImplementationChoose between Policy Map or Transformation Script. Select Transformation Scripts.
Transformation RuleGroovy script that maps incoming data to OpenIAM-compatible objects. Most sync logic resides here.
IDM Repository FieldUnique identifier for users in OpenIAM. Options: EMPLOYEE ID, IDM USER ID, PRIMARY EMAIL ADDRESS, PRINCIPAL NAME, or CUSTOM ATTRIBUTE.
Source Attribute NameUnique identifier from the source system.
Custom Rule for MatchingUse a Groovy script for complex matching logic when a single attribute is insufficient.
Attribute Names LookupScript that defines which source attributes are available in the transformation script. Must be set if using connectors like LDAP/AD.
File NameThe name of the uploaded CSV file. Use the Choose file button to upload.
SplitterCSV delimiter. Examples: ,, `

Developing synchronization scripts

The synchronization framework supports custom Groovy scripts at multiple points, providing flexibility to meet specific business needs. Refer to this document to learn how to develop your own synchronization scripts.

Synchronization troubleshooting

The table below describes common synchronization error messages found in the OpenIAM audit logs to help with troubleshooting.

Synchronization Error MessageDescription
TRANSFORMATION_RETURN_SKIPTriggered when conditions in the transformation script are not met.
Unparseable Date: "N"A date attribute could not be assigned due to an invalid format.
DUPLICATE_PRINCIPALAttempt to create a principal name that already exists.
INTERNAL_ERRORGeneral/unspecified error. Check synchronization logs for details.
VALIDATION_ERRORTriggered when validation fails in the validation script or due to OpenIAM constraints (e.g., regex mismatch).
MATCH_ATTR_EMPTYThe matching attribute in the source record is empty.

Synchronizing objects with non-unique names

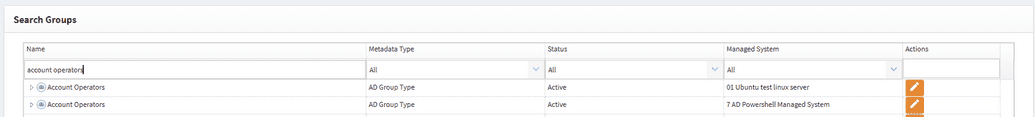

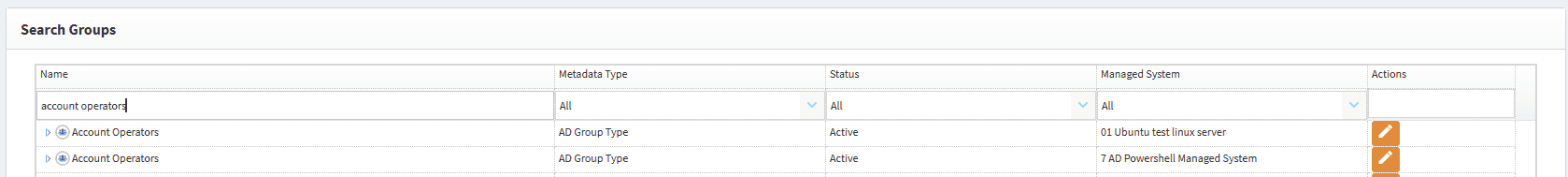

There may be cases where you need to synchronize objects that have the same name, but belong to different managed systems. A common example of this scenario is synchronizing groups that share identical names.

Matching group names

If synchronization is configured to match solely by name, the system will not be able to distinguish between the two groups and synchronization will fail. This is because, as of now, the synchronization engine does not support matching based on multiple fields directly.

To address this, you should use linked attributes, such as a combination of name and managed system, where the managed system acts as a unique identifier.

Starting from OpenIAM version 4.2.1.14, a custom matching script is provided to solve this issue: /sync/group/GroupCustomMatchObjectRule.groovy.

This script includes detailed comments explaining how it works. Specifically, it enables you to match group objects by their name in combination with their associated managed system, ensuring uniqueness.

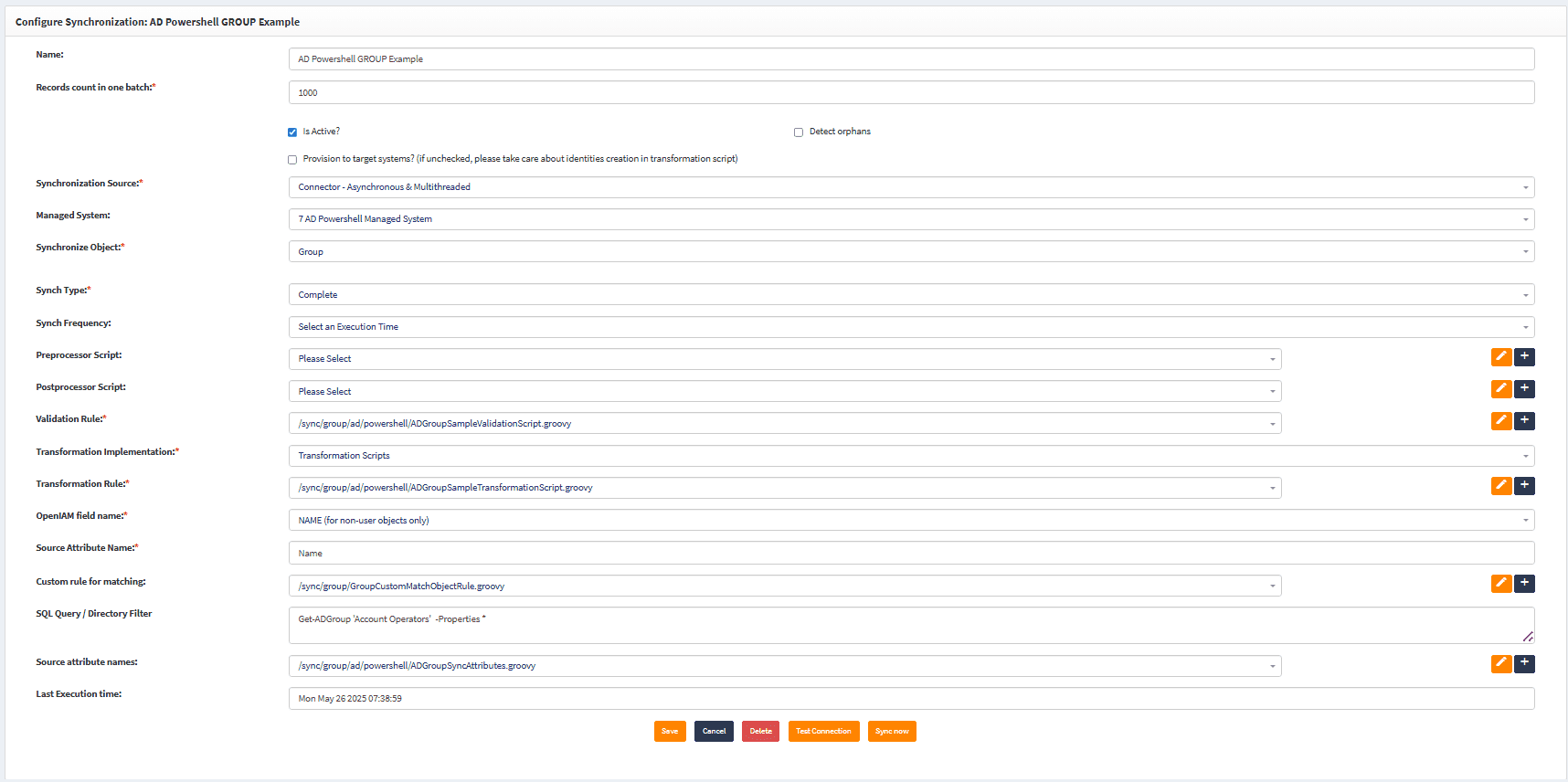

To use this script select it from the list of available Transformation scripts while configuring synchronization. The code for it is given below.

// Import necessary libraries and classes
import org.apache.commons.collections.CollectionUtils
import org.openiam.base.request.BaseSearchServiceRequest
import org.openiam.base.response.list.GroupListResponse
import org.openiam.common.beans.mq.RabbitMQSender
import org.openiam.idm.searchbeans.multivalue.SynchronizationRequestSearchBean
import org.openiam.idm.srvc.grp.dto.Group
import org.openiam.idm.srvc.recon.dto.MatchConfig
import org.openiam.idm.srvc.synch.dto.LineObject
import org.openiam.match.MatchObjectRule
import org.openiam.model.GroupPair
import org.openiam.mq.constants.api.OpenIAMAPI
import org.openiam.mq.constants.api.SynchronizationObjectProcessingAPI
import org.openiam.mq.constants.queue.synchronization.SynchronizationBulkGetQueue
import org.springframework.context.ApplicationContext
/**
* Script to match a group by a combination of name + managedSysId.
*/
class GroupCustomMatchObjectRule implements MatchObjectRule {
ApplicationContext context // Spring application context to fetch beans
@Override
List lookup(final MatchConfig matchConfig, final List list) {
// Retrieve required beans from the application context
final SynchronizationBulkGetQueue syncBulkGetQueue = context.getBean(SynchronizationBulkGetQueue.class)
final RabbitMQSender rabbitMQSender = context.getBean(RabbitMQSender.class)
// Cast input list to LineObject list
final List<LineObject> lineObjectList = list
println "Found ${lineObjectList.size()} objects in target"
final List<GroupPair> pairList = new ArrayList<>() // Resulting matched pairs
final List<Group> iamGroups = new ArrayList<>() // IAM groups fetched from OpenIAM
// Process only if target list is not empty
if (CollectionUtils.isNotEmpty(lineObjectList)) {
final Set<String> names = new HashSet<>()
// Extract group names from the incoming line objects based on the match source field
for (final LineObject lineObject : lineObjectList) {
names.add(lineObject.columnMap.get(matchConfig.matchSrcFieldName).getValue())
}
println("Collected ${names.size()} names from target ")
// Fetch matching groups from OpenIAM
if (CollectionUtils.isNotEmpty(names)) {
for (int i = 0; i < names.size(); i = i + 100) {
// Prepare search bean with collected names
SynchronizationRequestSearchBean synchronizationRequestSearchBean = new SynchronizationRequestSearchBean()
synchronizationRequestSearchBean.setNames(names)
// Wrap the bean in a base search request
BaseSearchServiceRequest searchRequest = new BaseSearchServiceRequest<>(synchronizationRequestSearchBean)
searchRequest.setFrom(0)
searchRequest.setSize(names.size())
// Call OpenIAM service via MQ
GroupListResponse groupListResponse = rabbitMQSender.sendAndReceive(syncBulkGetQueue,
(OpenIAMAPI) SynchronizationObjectProcessingAPI.FIND_GROUPS, searchRequest, GroupListResponse.class)
// Filter by managed system ID
if (groupListResponse != null && CollectionUtils.isNotEmpty(groupListResponse.getList())) {
println("Found groups ${groupListResponse.getList().size()} in OpenIAM ")
iamGroups.addAll(groupListResponse.getList().findAll { it.getManagedSysId() == matchConfig.getManagedSysId() })
}
println("After filter by managed system rested ${iamGroups.size()} groups in OpenIAM ")
}
// Match each target LineObject with IAM groups by name
for (LineObject lineObject : lineObjectList) {
String targetGroupName = lineObject.columnMap.get(matchConfig.getMatchSrcFieldName()).getValue()
println("try to match ${targetGroupName}")
// Perform case-insensitive name match
Group group = iamGroups.find({ Group it ->
it.getName().equalsIgnoreCase(targetGroupName)
})
// If a match is found, pair them; otherwise, use empty Group object
if (group) {
println("Group was found in IAM")
pairList.add(new GroupPair(lineObject, group))
} else {
println("Group was NOT found in IAM")
pairList.add(new GroupPair(lineObject, new Group()))
}
}
} else {
println "No names were collected from result."
}
}
// Return final list of matched (or unmatched) group pairs
return pairList
}
@Override
List getMatchRegex() {
return null
}
@Override
SynchronizationObjectProcessingAPI getApi() {
return SynchronizationObjectProcessingAPI.FIND_GROUPS
}
@Override
Class getDataResponseClassName() {
return GroupListResponse.class
}
}

This approach allows accurate synchronization of objects with non-unique names across different managed systems.
