This page covers common use cases applicable to all OpenIAM PowerShell connectors.

Working with the connector configuration

Sometimes there is a need to change the connector configuration. These changes can include connection parameters, enabling debug mode, and so on. Starting with v5 of the OpenIAM .NET connectors, the configuration file is stored inside the connector folder.

If you are using v4 of the connectors, the configuration file can be found in %programdata%\OpenIAM\, where the config file name is based on the connector name given during installation.

The config file, Connector.config, is stored in JSON format. The file is monitored by the connector service, which detects changes automatically. No connector restart is required when you change the config file — changes are applied on the fly.

Connector configuration format

This is a sample configuration file:

{
   "ConnectorName": "MsPSGraphConnector",
  "LogLevel": 0,
  "IsSaveRequestEnabled": true,
  "IsRabbitMQEnabled": true,
  "IsStatusLogEnabled": false,
  "RabbitMQHost": "aipoclouddemo.openiam.com",
  "RabbitMQUsername": "enc:AQAAANCMnd8BFdERjHoAwE/Cl+sBAAAAaauU57pNqUql2K8z7cfMEAQAAAACAAAAAAAQZgAAAAEAACAAAAD9Vt21IK2wvWTNM47GAyXaTQ2epJvUyzFWJj0SHYwGoQAAAAAOgAAAAAIAACAAAAAzFAXpoqQi6bT8qlkQhJduv3yIOJCH8q6gshY7jvIyTxAAAABmxTNXwdqiRgIk8CfFsEVkQAAAAAFcf6YJhkhN+in+t0kiNqQMK24bSF7fdTv+GCCBQ+c1gBEuoS2cIFMVpNcOtB5jkXpAGuN8/ernPSga2ZXx1Xs=",
  "RabbitMQPassword": "enc:AQAAANCMnd8BFdERjHoAwE/Cl+sBAAAAaauU57pNqUql2K8z7cfMEAQAAAACAAAAAAAQZgAAAAEAACAAAAANvSMNp7vGCEve7PUlcR3A7XtlHeeXi+xhUWuo0CDLcQAAAAAOgAAAAAIAACAAAADaM2r+2bJVtxmdtaXd1aMQDOvto/TBM4ZtTvpCLOekPiAAAACCtZ5Hfs6s5OMRBbGkadX9H998RMTrB92Nhpjoq3lHsEAAAAB6fGgR/4YnW92Mv0svbT4F1Q/QZDBNokFq9BDN47nvtedK4jko8uZ9eSofLcUA2VCvuuscYi+TSvxPVMGn1xYa",
  "RabbitMQPort": 5672,
  "RabbitMQVhost": "enc:AQAAANCMnd8BFdERjHoAwE/Cl+sBAAAAaauU57pNqUql2K8z7cfMEAQAAAACAAAAAAAQZgAAAAEAACAAAACKXn/U4uKm5rBVRww7sZF0HuOzChLwx+h8GVHd/+DbKwAAAAAOgAAAAAIAACAAAAAcz3RieV3WnaVq1FdZ45XGsbpRKzDIkg2rk1b32Yk/6zAAAAAhxXUSv2Wvq1QU41EYXlrwdzcZFMD+mvgG/guXIM9vnCgdnwHs1Ztp33pOXHRxOzJAAAAATTnhbX/FFQWIkXFexqwfW+EKiENLofI2EEb3tS6R1T1NwMoOuqEWcU8ILiLwHiAE4PVLRNrdBCrnpJIU8aCNmg==",
  "RabbitMQQueues": [
    {
      "RabbitMQReceiveQueue": "RemoteConnector_ 402_Request",
      "RabbitMQResponseQueue": "RemoteConnector_ 402_Response",
      "Concurrency": 1,
      "QueueType": "quorum"
    }
  ],
  "ExecutionTimeoutMin": 60,
  "IsTLSEnabled": false,
  "LogSize": 256,
  "RequestRunnerPath": \\Runners\\PSClassic\\ConnectorRequestRunner.exe,
  "SearchResponseBatchSize": 1000000,
  "LogSearchResponses": false,
  "IsCleanupTaskActive": false,
  "FlushTimer": 3,
  "LogDBType": "SQLite",
  "LogDBConnectionString": "Data Source=C:\\Connectors\\MsPSGraphConnector\\Log.db",
  "DisableManSysHealthcheckRequests": false
}

The table below describes each configuration option.

Working with encrypted parameters

The OpenIAM connector server should be well-secured and access should be restricted to a limited number of users. To ensure security, sensitive configuration parameters in the config file are encrypted using the machine key. This means the encrypted string can only be decrypted on the same connector machine.

When the OpenIAM connector installer runs, it encrypts sensitive data such as username, password, and VHost by default. To generate a new encrypted value to replace an existing one, open a PowerShell console on the connector machine and run the following commands:

Set-Location 'Your connector folder address'
Import-Module .\CryptCmdlet.dll
ConvertTo-EncryptedString -StringToEncrypt 'SomeValue' | clip

These commands encrypt the SomeValue string and copy the result to your clipboard (remove | clip if you want the output displayed instead). Replace SomeValue with the actual value you want to encrypt, then paste the result into the connector configuration file. Make sure to preserve the JSON format — starting and closing quotes (") must be in the correct positions.

Working with logs

Each request sent from OpenIAM contains a parentAuditLogId parameter that allows OpenIAM to track the request result and display it in the OpenIAM audit logs. All errors returned from connectors are visible in OpenIAM audit logs.

Sensitive values such as passwords are never written to the connector log in plain text — they are masked or encrypted. Use SecureStringAttributes in the connector configuration to extend this protection to additional attributes.

However, there may be situations where viewing audit logs is not possible — for example, when the connector loses connection with OpenIAM. In such cases, the local connector logs are very useful for troubleshooting.

Log format

The connector log file is located inside the connector folder and is called Log.db.

• PowerShell connectors version 4.x use SQL CE 3.5 database log format.
• PowerShell connectors version 5.0.0.0–5.31.0.0 use SQL CE 4.0 format.
• PowerShell connectors version 5.32.0.0 and later use SQLite log database by default.

It's important to use a compatible database viewer.

Viewing the log database

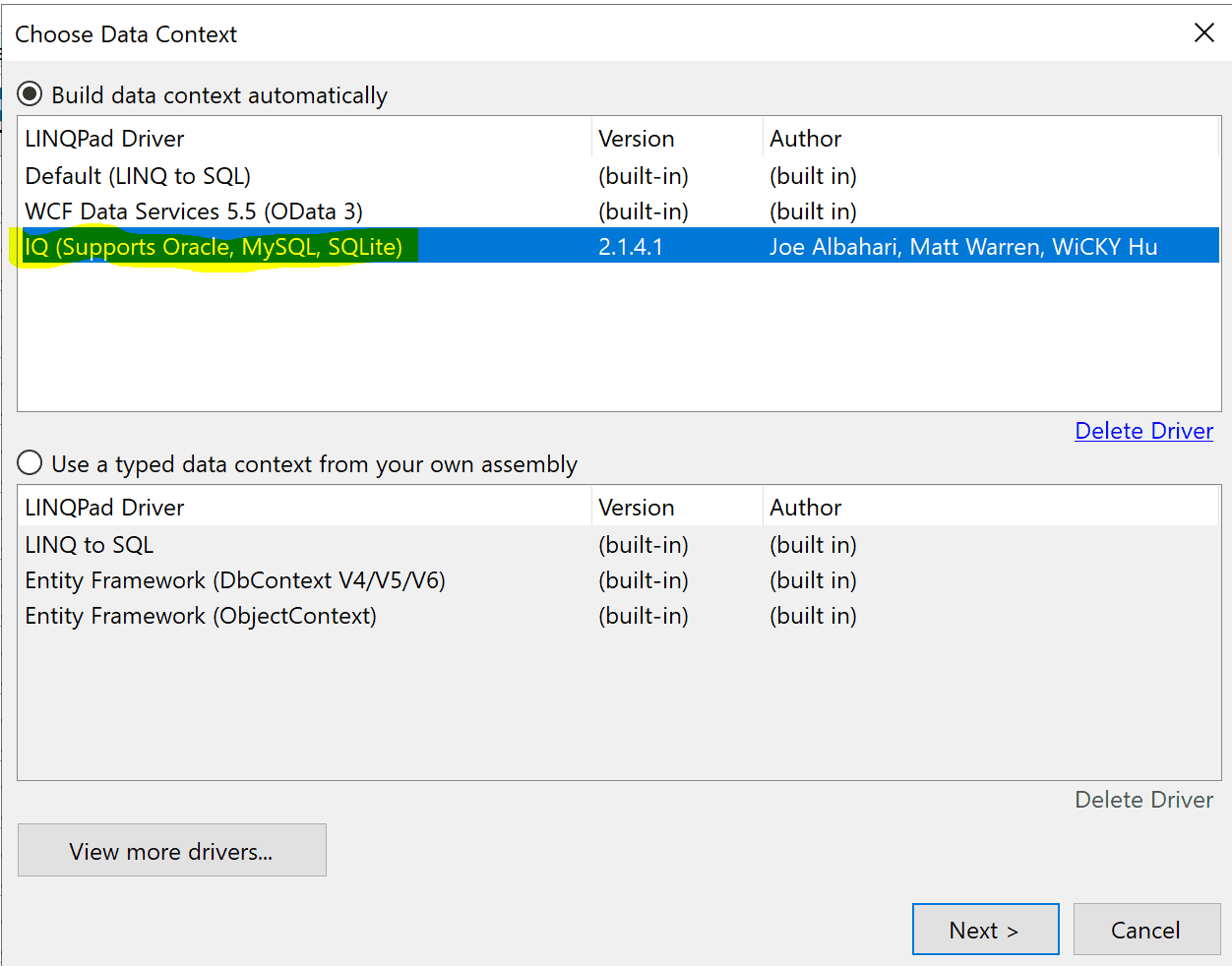

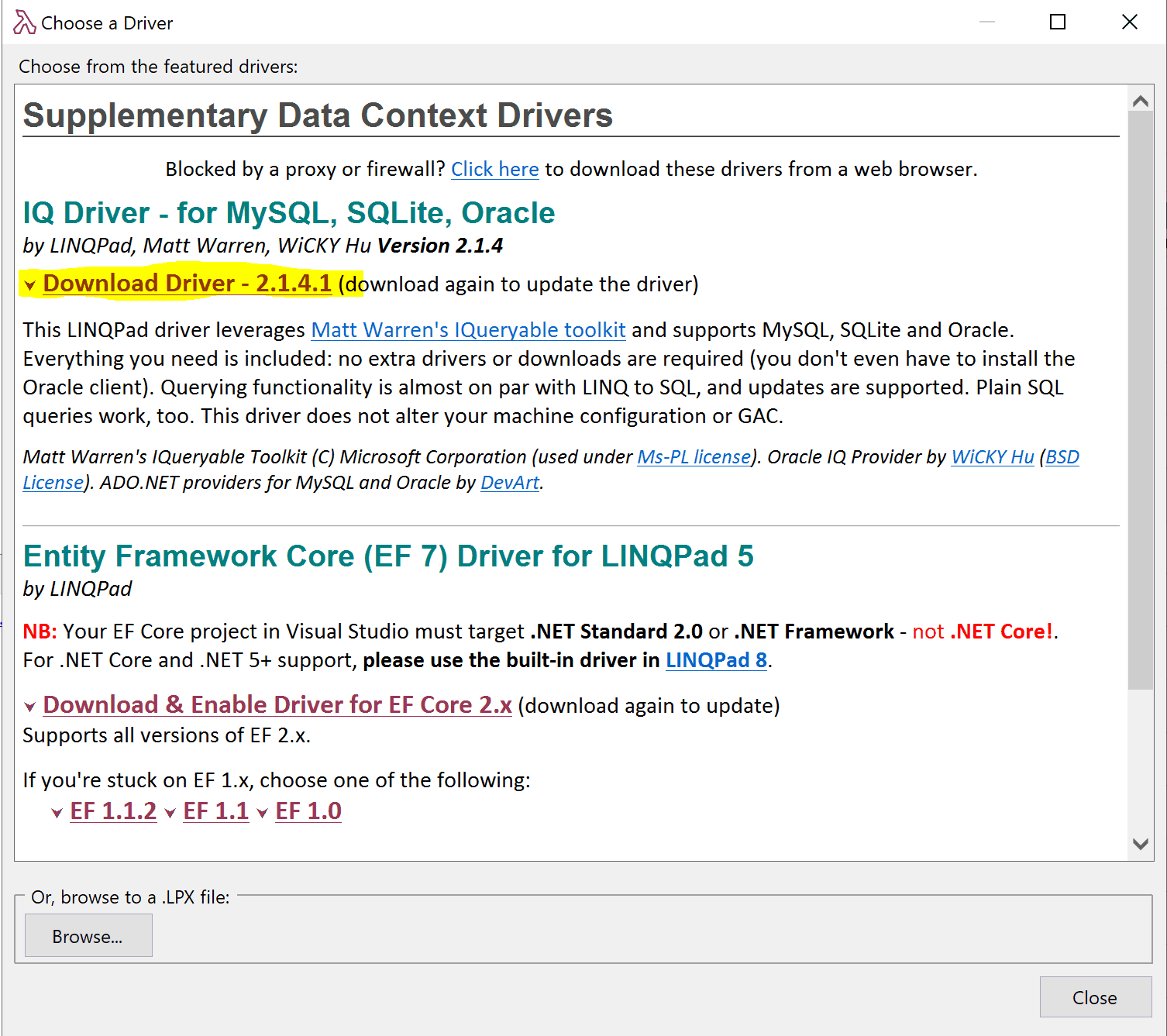

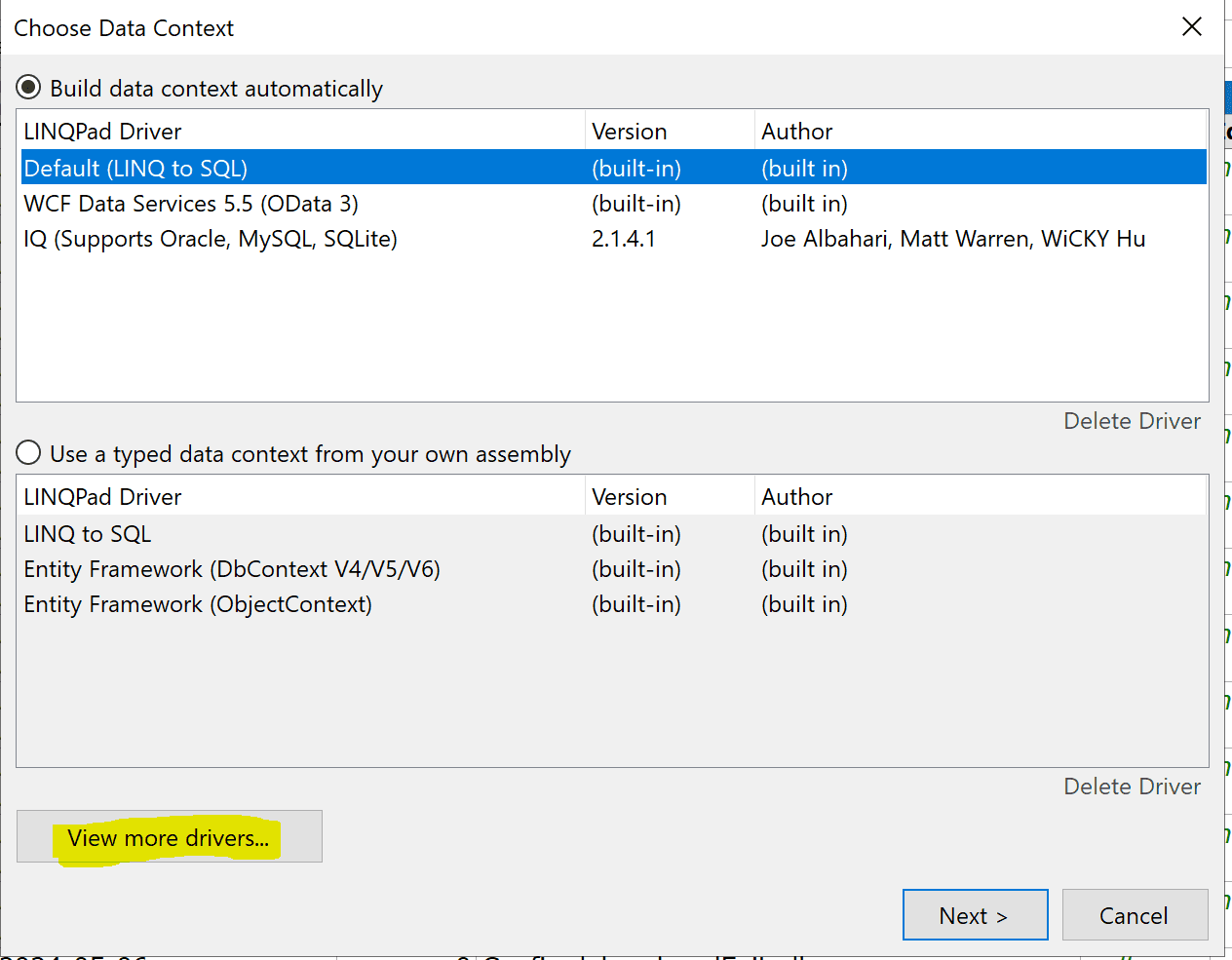

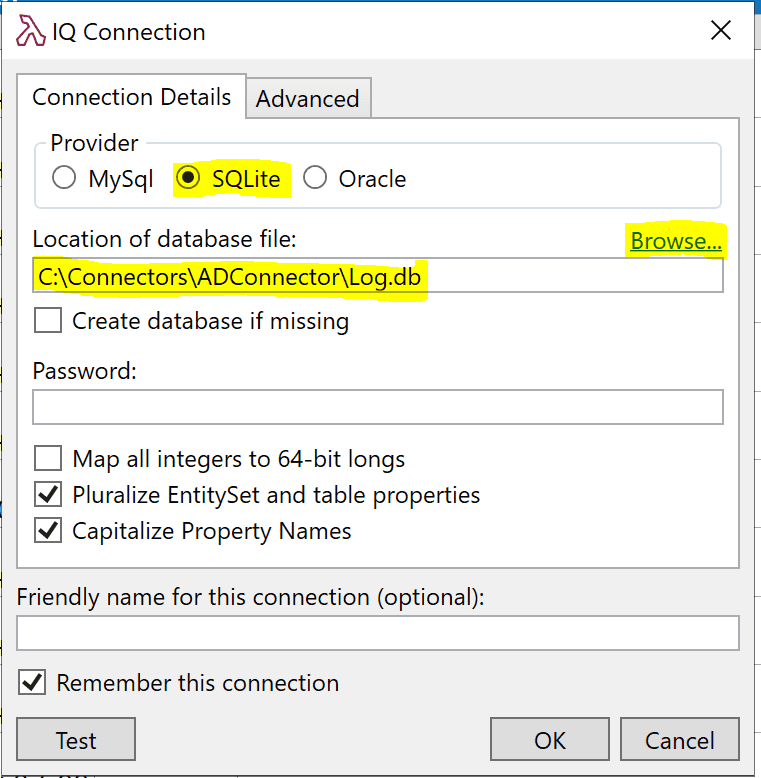

By default, all .NET/PowerShell connectors save logs in an SQLite database, so any compatible viewer can be used. An example using one such viewer is shown in the section above. Below are a few example queries for finding and viewing logs:

• Query logs for provisioning a specific user:

SELECT *
FROM Logs
WHERE IdentityValue = 'SomeUserIdentity'
ORDER BY ID DESC

• Query logs for a specific request ID:

SELECT *
FROM Logs
WHERE RequestID = '5583cf9a-abdd-42cb-aa50-b433458c4cfb'
ORDER BY ID DESC

Windows Event Viewer

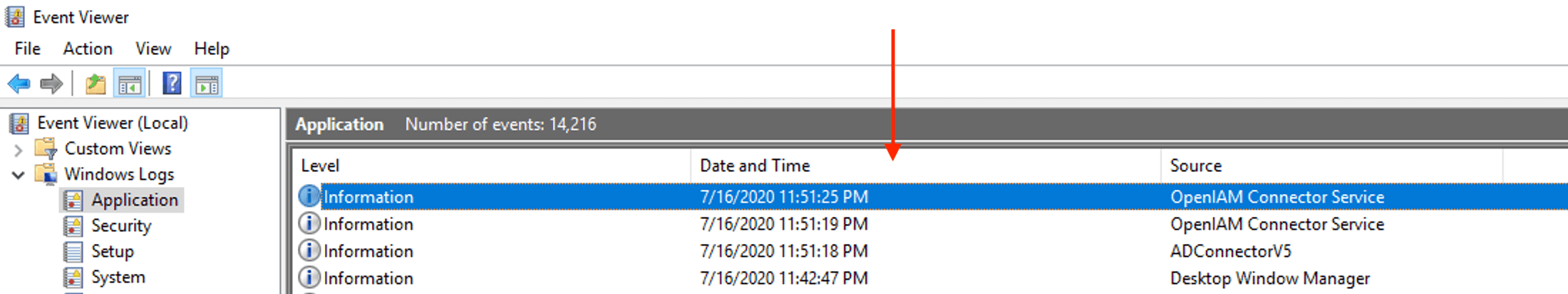

Important messages may also be sent by the connector to the Windows Event Viewer. This includes situations such as problems starting the service itself — in which case Log.db may not be useful because the service did not start normally. Messages can be found under Windows Logs > Application, filtered by source OpenIAM Connector Service and the ConnectorName provided during installation. Below is an example of how a connector restart appears in the Windows Event Viewer.

Simulation mode

PowerShell connectors support a Simulation mode, which is a powerful tool for troubleshooting and replaying certain requests.

When debug mode is on and IsSaveRequestEnabled is enabled, the connector creates a JSON file for each request received from OpenIAM. This file contains all request parameters. You can then trigger the connector to reprocess the request from the file, without waiting for a new request from OpenIAM.

*

To trigger a replay, open Connector.ps1 in the connector folder and edit the lines below. We recommend using PowerShell ISE for editing PowerShell files.

The initial code snippet to modify:

[bool]$isReplayXMLSimulation = $false

if($isReplayXMLSimulation -eq $true)
{
    Add-DbLog -Message "Restoring request from simulation. Connector folder is '$connectorFolder'" -RequestID $requestID -LogLevel 0 -MinLogLevel $minLogLevel
    #load simulation content
    $simulationFileName = 'filename.json'
    $requestString = Restore-RequestString -ConnectorFolder $connectorFolder -FileName $simulationFileName
    $connectorOperation = 'SAVE'
}

1. Change $isReplayXMLSimulation to $true.
2. Set simulationFileName to the name of your file inside the Simulation folder (filename only, not the full path).
3. Set connectorOperation to the appropriate operation type. Valid options: SAVE, SEARCH, DELETE, RESET_PASSWORD, LOGIN, SUSPEND, RESUME, TEST.

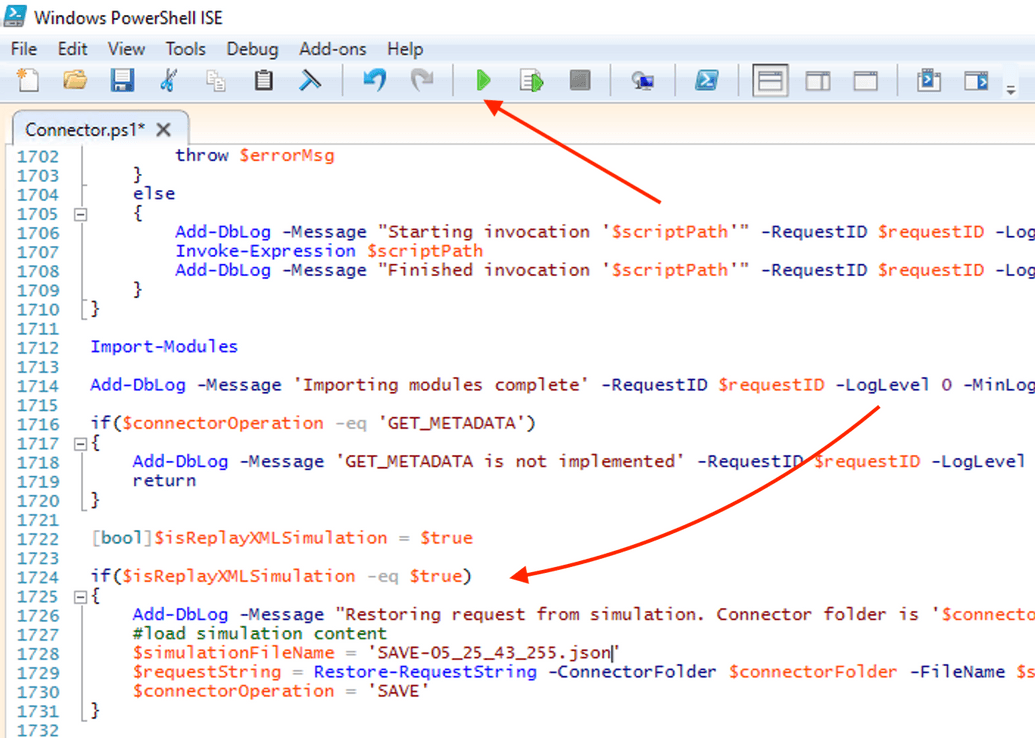

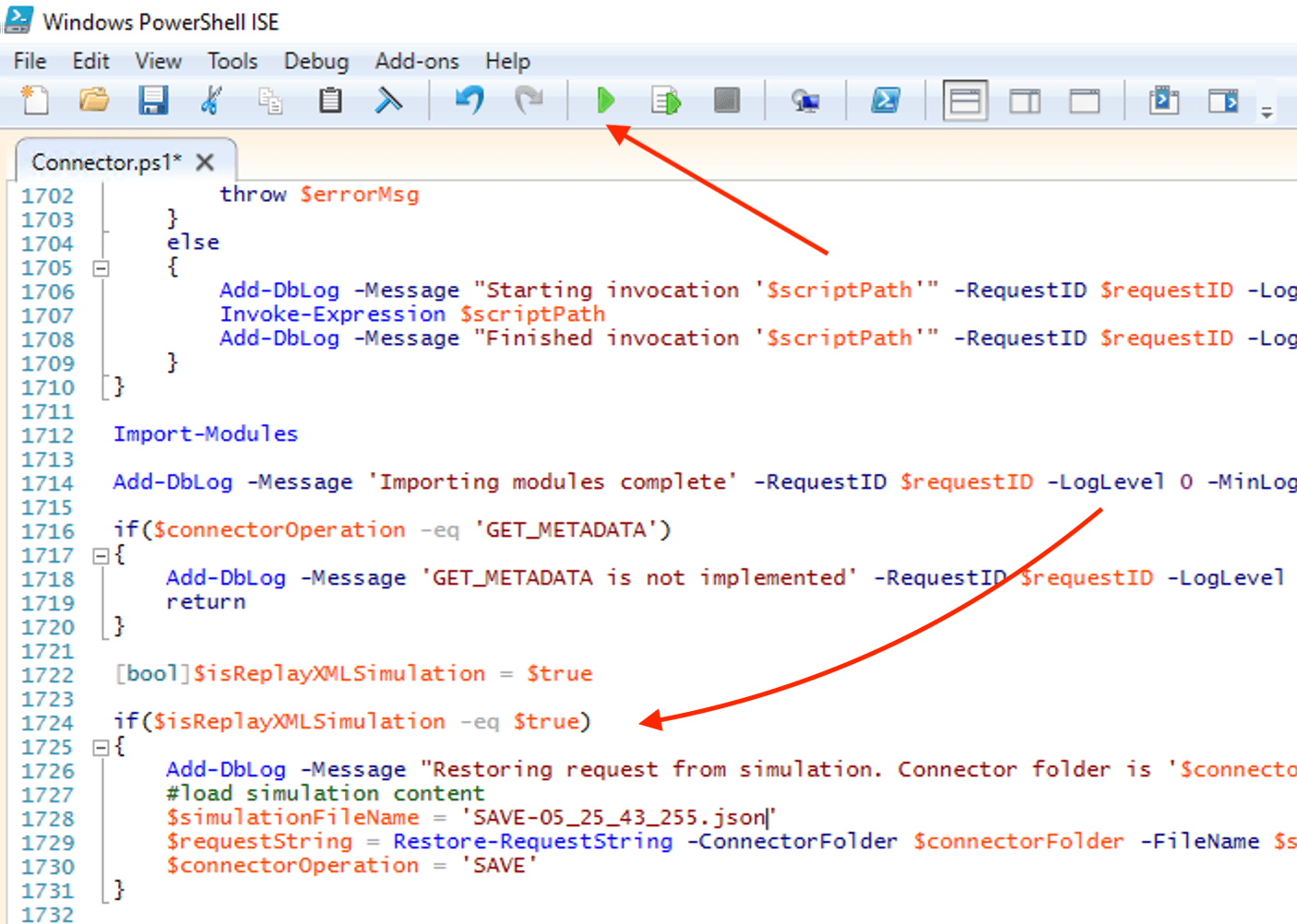

The modified version might look like:

[bool]$isReplayXMLSimulation = $true

if($isReplayXMLSimulation -eq $true)
{
    Add-DbLog -Message "Restoring request from simulation. Connector folder is '$connectorFolder'" -RequestID $requestID -LogLevel 0 -MinLogLevel $minLogLevel
    #load simulation content
    $simulationFileName = 'SAVE-05_25_43_255.json'
    $requestString = Restore-RequestString -ConnectorFolder $connectorFolder -FileName $simulationFileName
    $connectorOperation = 'SAVE'
}

When you apply your changes, you can run and debug the PowerShell script using PowerShell ISE or any appropriate tool.

Checking the connector version

It is recommended to use the latest version of the connector. All .NET/PS connectors are backwards compatible, so there will be no issues using the latest connector version with OpenIAM 4.2.0.

To check your current .NET/PS connector version:

If the connector is not installed:

1. Right-click the installer file and select Properties.

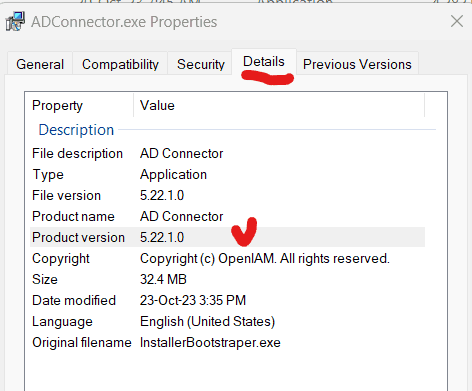

2. In the window that opens, find the Details section, as shown below.

If the connector is installed:

1. Go to Control Panel > Programs > Programs and Features.

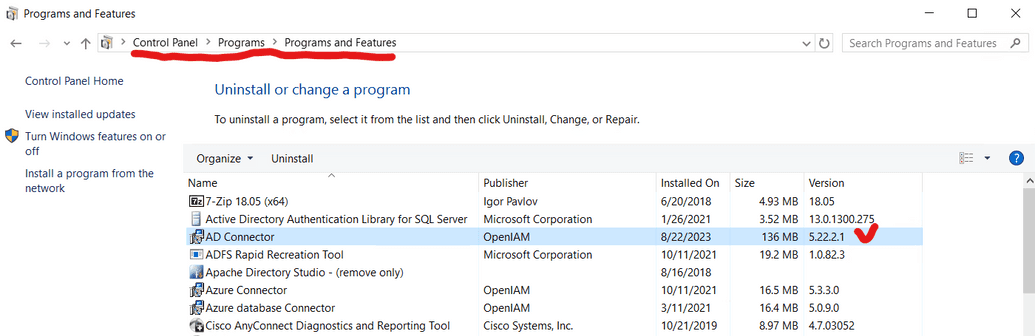

2. Find the connector in the list — the version is shown on the same line, as shown below.

Utilities tool

The connector ships with a Utilities GUI application located in the connector folder. It provides common administration and troubleshooting tasks without requiring manual script or config-file edits:

• Test connection — verifies connectivity and credentials for the managed system.
• Encrypt string — encrypts a value using the machine key so it can be safely pasted into Connector.config (equivalent to running the ConvertTo-EncryptedString cmdlet manually — see Working with encrypted parameters above).
• RabbitMQ settings — view and update the RabbitMQ connection parameters stored in the configuration file.

TLS connection to RabbitMQ

If you want to establish a TLS connection to a RabbitMQ instance configured with a self-signed certificate, the certificate must be added to the Trusted People store on the connector host.

The connector requires a trusted certificate to establish a TLS connection to RabbitMQ. TLS is optional, but if you enable it, the certificate must be trusted. Self-signed certificates need to be imported into the Trusted People store at the operating system level. The video below demonstrates how to do this.

It is also worth noting that when establishing a TLS connection to any host, you must use the DNS name listed in the certificate — not the IP address. Using an IP address instead of the hostname will result in a "Certificate is invalid" error. When verifying the certificate, check the hostname it was issued to.
